Introduction
When you need to separate solid / liquid mixtures with high solids content, you can choose a decanter centrifuge. In contrast to chamber filter presses, these solid vortex centrifuges or decanter centrifuges operate continuously. High centrifugal forces separate finely divided solid particles from the suspension.
Our decanter centrifuges are modular in design and can be used in a wide range of industries. Centrifuges can be optimally adjusted for specific applications. Applications range from sludge dewatering to classification or wet classification to solid classification.
Decanters designs:
Type: 2-phase separation, 3-phase separation
Materials: use high-quality stainless steel for all product wetted areas.
Bearings: SKF brand. A special selection and arrangement of bearings provides for long life and exceptional reliability.
Wear protection: welded hard facing or spray coating,ceramic technology.
Screw conveyor is widely used in city sewage treatment and industries. LSS series are designed as shaftless structure. The U-shaped solid tank is hermetic with a lid (which can be opened when necessary). Thus, such conveyor is suitable for conveying solid that is a pollutant, with abominable smell, dangerous, for bridging
Filter residue and dewatered sludge treatment in sewage treatment plant
Industrial and living garbage treatment in industrial and city habitant area
Solid in strip or strap form found in paper and fiber industry
Industrial solid fuel or waste such as waste residue, ash or straw
Specification of decanter centrifuge
| Model | Drum | G-force | Capacity (m3/h) | Max solid discharge (m3/h) | Power (kw) | Weight (kg) | Overall size (L×W×H) (mm) |
| Diameter (mm) | Speed (rpm) | Length (mm) | Length-to-diameter rate |
| PDC-10-W | 250 | 5400 | 1000 | 4 | 4080 | 0.5~5 | 0.4 | 11/4 | 1000 | 2410 × 800 × 1080 |
| PDC-12-4-W | 300 | 4200 | 1200 | 4 | 3500 | 1~5 | 0.6 | 11/4 | 1200 | 2610 × 800 × 1080 |
| PDC-12-4.5-W | 300 | 4200 | 1350 | 4.5 | 3000 | 1~10 | 0.8 | 11/4 | 1400 | 2760 × 800 × 1080 |
| PDC-14-W | 355 | 4000 | 1600 | 4.5 | 3180 | 1~20 | 1.2 | 18.5/7.5 | 1800 | 3495 × 840 × 1180 |
| PDC-16-W | 400 | 3650 | 1800 | 4.5 | 3000 | 2~25 | 2 | 22/7.5 | 2500 | 3890 × 1020 × 1205 |
| PDC-18-4.4-W | 450 | 3200 | 2000 | 4.4 | 2600 | 3~35 | 2.8 | 30/11 | 3000 | 4297 × 1080 × 1385 |
| PDC-18-4.8-W | 450 | 3200 | 2150 | 4.8 | 2600 | 4~40 | 3 | 37/11 | 3200 | 4447 × 1080 × 1385 |
| PDC-20-4-W | 500 | 3000 | 2000 | 4 | 2500 | 5~45 | 3.2 | 37/11 | 3800 | 4330 × 1140 × 1470 |
| PDC-20-4.5-W | 500 | 3000 | 2250 | 4.5 | 2500 | 8~50 | 3.5 | 45/15 | 4000 | 4580 × 1140 × 1470 |
| PDC-21-W | 530 | 2900 | 2280 | 4.3 | 2500 | 15~65 | 5 | 55/15 | 5000 | 4924 × 1170 × 1540 |
| PDC-23-W | 580 | 2780 | 2500 | 4.3 | 2500 | 20~80 | 6.5 | 75/18.5 | 6500 | 5205 × 1270 × 1540 |
| PDC-26-W | 650 | 2500 | 2800 | 4.3 | 2270 | 25~110 | 8 | 75/18.5 | 7000 | 4300 × 1900 × 1350 |

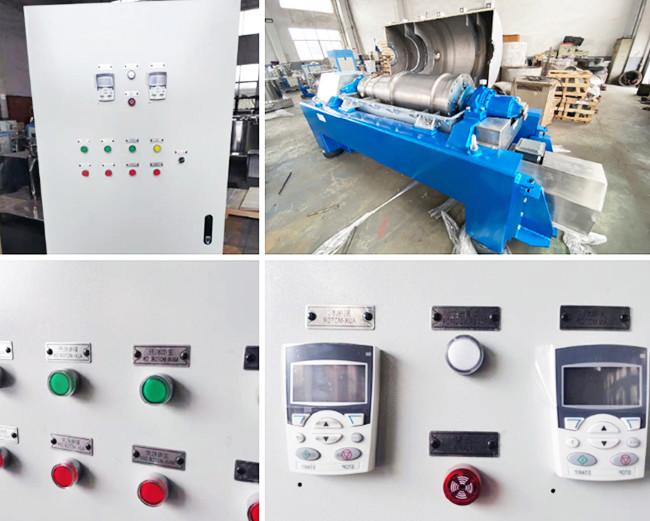

Photos of decanter centrifuge
About us
Peony Centrifuge has been dedicated to producing machinery and equipments and carrying out facility construction, pursuing the best quality and producing the best product at the same time.
We are committed to reward you with a better quality in return for our interest in and faith toward.
We will do our utmost for one more stepping forward, based on our infinite services and trust to customers.
After sales
*12 months guarantee period from machine arriving date.
*Abundant spare parts in stock are availble to provide.
*Our technicians could be dispatched for overseas service.
*7*24 hours technical consultation.
*Your workers could get trained both in our factory and yours.
*Routine tracing till the machine work properly will be done timely.
*We will remind you to do the normal maintenance.
*Your suggestions or any comments & reflection would be treated in priority.
*Marketing team will visit you during our visit to your country if you require.
